These are the three decks that we will work on connecting and assembling tomorrow by aligning the optics

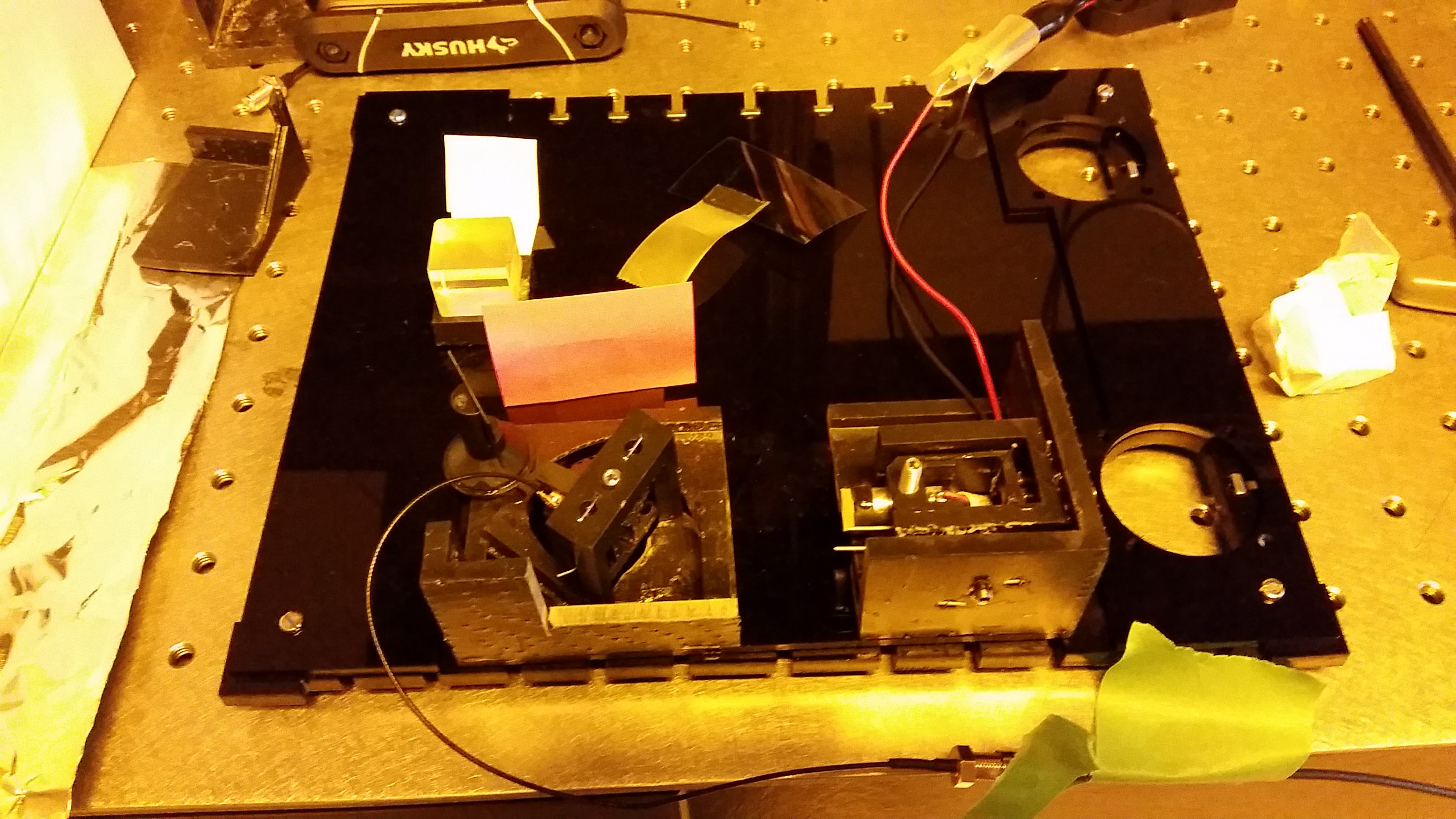

I have just completed working with the Galvo/ Polygon Mirror set

The monitor is something that I have always wanted to learn more about and I am so happy to be working with it now because of the Senior Project. This is the power supply that we made for it.

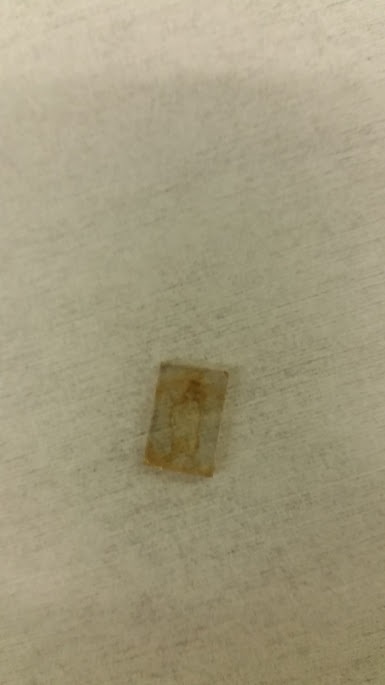

This is a picture of a burned sample. I placed in DPE for 4.5 hours and took out and let cool down. Then I placed in Acetone and even then I noticed that some residue wasn't coming off.

This is a picture of the completed waveguides. The next step is Dilute Proton Exchange unless it is decided that new aluminum is needed.
These last two weeks have been extremely busy and I was only able to complete the RIE and waveguide writing steps of the process.

These are the lapping films I want to buy. But I don't know the price and there are way too many of these. Where can I find other things that do this

http://www.3m.com/3M/en_US/company-us/all-3m-products/~/3M-Diamond-Lapping-Film-668X-0-10-Micron-PSA-Disc-1-30-in-x-NH-2000-per-case?N=5002385+8709318+8709350+8710644+8711017+8734569+8734640+3294409573&rt=rud
http://www.3m.com/3M/en_US/company-us/all-3m-products/~/3M-Diamond-Lapping-Film-666XW-0-50-Micron-PSA-Disc-5-in-x-NH-25-per-inner-250-per-case?N=5002385+8709318+8709350+8710644+8711017+8734569+8734640+3294003010&rt=rud

This is a picture of the good grating that I am working on etching into the Lithium Niobate. Do you have any advice on how I can get it to be cleaner?

This is an odd happenstance from this week that I do not understand. I used non-inverted, 38% power, with a normal centering(but not automatic) and developed for 30 seconds with MIF 300. I do not understand what happened

I am continuing to work on the multi-channel device. No pictures to show yet but fabrication is in process.

These are the parts that I ordered that arrived this week.
I was assuming that the polishing pads would have a type of backing that I could take off but it looks like these designs are wrong. Should I order different ones or is there a different way of putting them on?

I am starting to work on a new design for the multi-channel device with 9 sections. This is the design

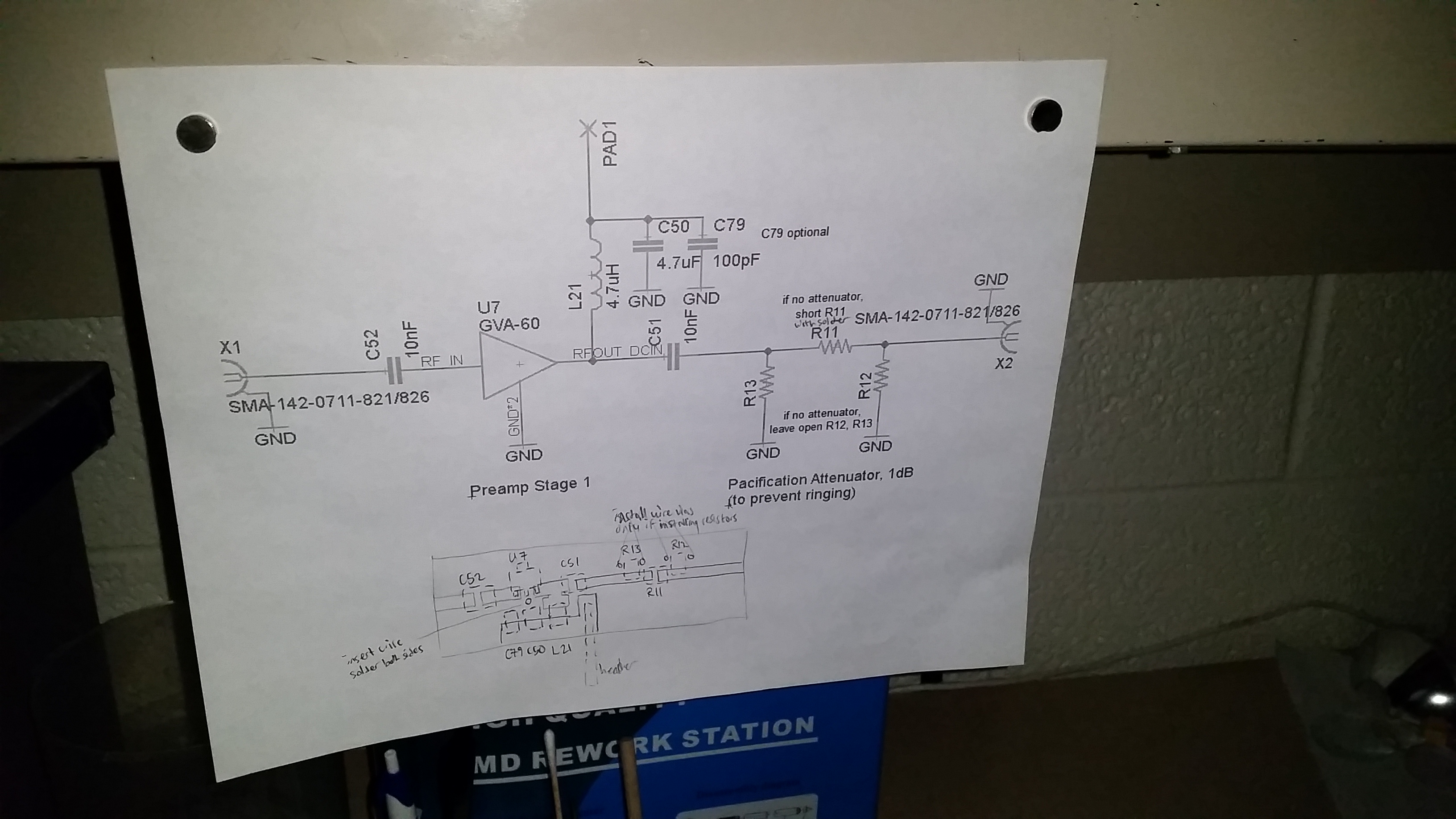

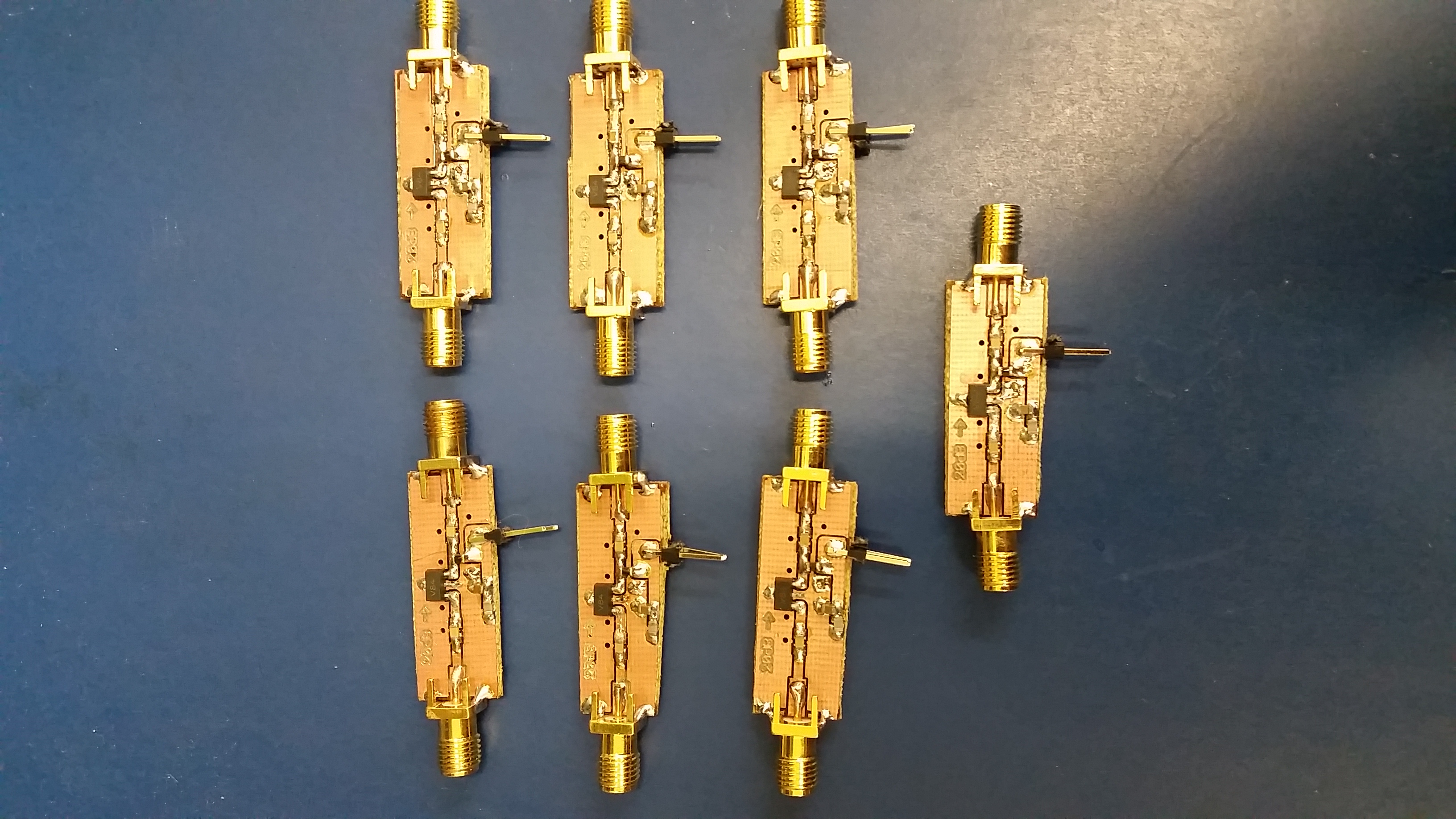

These boards are designed for various applications. Drew made the original design and Scott and I worked out a layout for it. Originally I needed them to use with my 9-channel AO device but they can also be used in the monitor as well as other projects in the lab.
